ufactory_vision

Project Overview

ufactory_vision is a vision-based grasping demo project based on UFACTORY robot arms. Users can quickly implement vision-based object detection and grasping with this project.

Hardware Requirements

Hardware Configuration for Example Scripts

Robot Arm Model	Camera Model	End Effector
xArm 5/6/7 or 850	Intel Realsense D435 / Luxonis OAK-D-Pro-PoE	UFACTORY Gripper
Lite 6	Intel Realsense D435 / Luxonis OAK-D-Pro-PoE	Lite 6 Vacuum Gripper

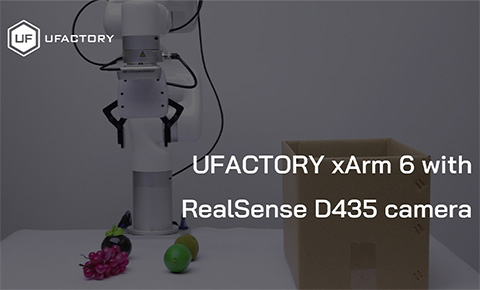

Configuration with Intel Realsense D435 Camera

• Robot Arm: UFACTORY xArm 6
• Gripper: UFACTORY xArm Gripper
• Camera: Intel RealSense D435
• Camera Mount: Provided by UFACTORY (available for purchase or 3D printing)
  • Purchase Link: UFACTORY Camera Stand
  • 3D File Download: Realsense_Camera_Stand.STEP

Configuration with Luxonis OAK-D-Pro-PoE Camera

• Robot Arm: UFACTORY 850
• Gripper: UFACTORY xArm Gripper
• Camera: OAK-D Pro PoE
• PoE Injector: Tenda POE30G-AT, 1000M, 30W (Other brands will also work)
• Camera Mount: Provided by UFACTORY (3D printing or CNC with 3D file)
  • 3D File Download: OAK_Camera_Stand.STEP

Software

Supported Python Versions

Supported Python versions: 3.8-3.11 (Recommended: 3.11).

Installation

1. Clone the Repository

git clone https://github.com/xArm-Developer/ufactory_vision.git
cd ufactory_vision

2. Create a Python Virtual Environment

It is recommended to use a virtual environment for running this project.

Windows (Using Anaconda)

conda create --name ufactory_vision python=3.11
conda activate ufactory_vision

Linux (Using venv)

python3.11 -m venv ufactory_vision
source ufactory_vision/bin/activate

3. Install Dependencies and Run Examples

Please follow the corresponding installation and execution steps based on the camera model you are using. First, ensure you are in the ggcnn_grasping_demo directory:

cd ggcnn_grasping_demo

Using Intel Realsense D435 Camera

1. Install Dependencies

   pip install -r requirements_rs.txt

2. Run Example

   Replace 192.168.1.xxx with the actual IP address of your robot arm controller.

   • UFACTORY 850 or xArm 5/6/7 Series Robot Arm

     python run_rs_grasp.py 192.168.1.xxx

   • UFACTORY Lite 6 Robot Arm

     python run_rs_grasp_lite6.py 192.168.1.xxx

Using Luxonis OAK-D-Pro-PoE Camera

1. Install Dependencies

   pip install -r requirements_depthai.txt

2. Run Example

   Replace 192.168.1.xxx with the actual IP address of your robot arm controller.

   • UFACTORY 850 or xArm 5/6/7 Series Robot Arm

     python run_depthai_grasp.py 192.168.1.xxx

   • UFACTORY Lite 6 Robot Arm

     python run_depthai_grasp_lite6.py 192.168.1.xxx

Important Notes

• TCP/Coordinate Offset: Do not set TCP offset or coordinate offset, otherwise you may need to fine-tune the code.
• TCP Payload: Set TCP payload to avoid false collision detection.
• Collision Detection: Before running the example, ensure that collision detection is enabled. It is recommended to set the collision sensitivity to 3 or higher.

License

This project is licensed under the BSD 3-Clause License. For details, please check the LICENSEfile.

Acknowledgements

Our demo project is built based on the following open-source projects:

• GGCNN
• ggcnn_kinova_grasping
