How to use the Transparent Transmission Function at the End Effector?

When the end tool supports RS-485 communication but not the standard Modbus RTU protocol, the end effector transparent transmission function can be used. This function forwards data directly to the end IO board without any data processing.

Hardware Connection

The pin definition diagram of the robotic arm end effector is as follows; the following connections are required:

Need to connect 2×24V, 2×GND, RS485A, RS485B.

Color	Singal	Color	Singal
Brown(PIN1)	+24V(Power)	White(PIN3)	GND
Blue(PIN2)	+24V(Power)	Green(PIN4)	GND
Pink(PIN5)	RS485-A	Yellow(PIN6)	RS485-B

Control

• The end effector baud rate and the end tool baud rate must be consistent. The default end effector baud rate is 2M.
• The default end effector timeout period is 50ms, which should be adjusted according to the timeout period of the end tool.

Control via UFACTORY Studio

Version requirement: ≥V2.7.0;

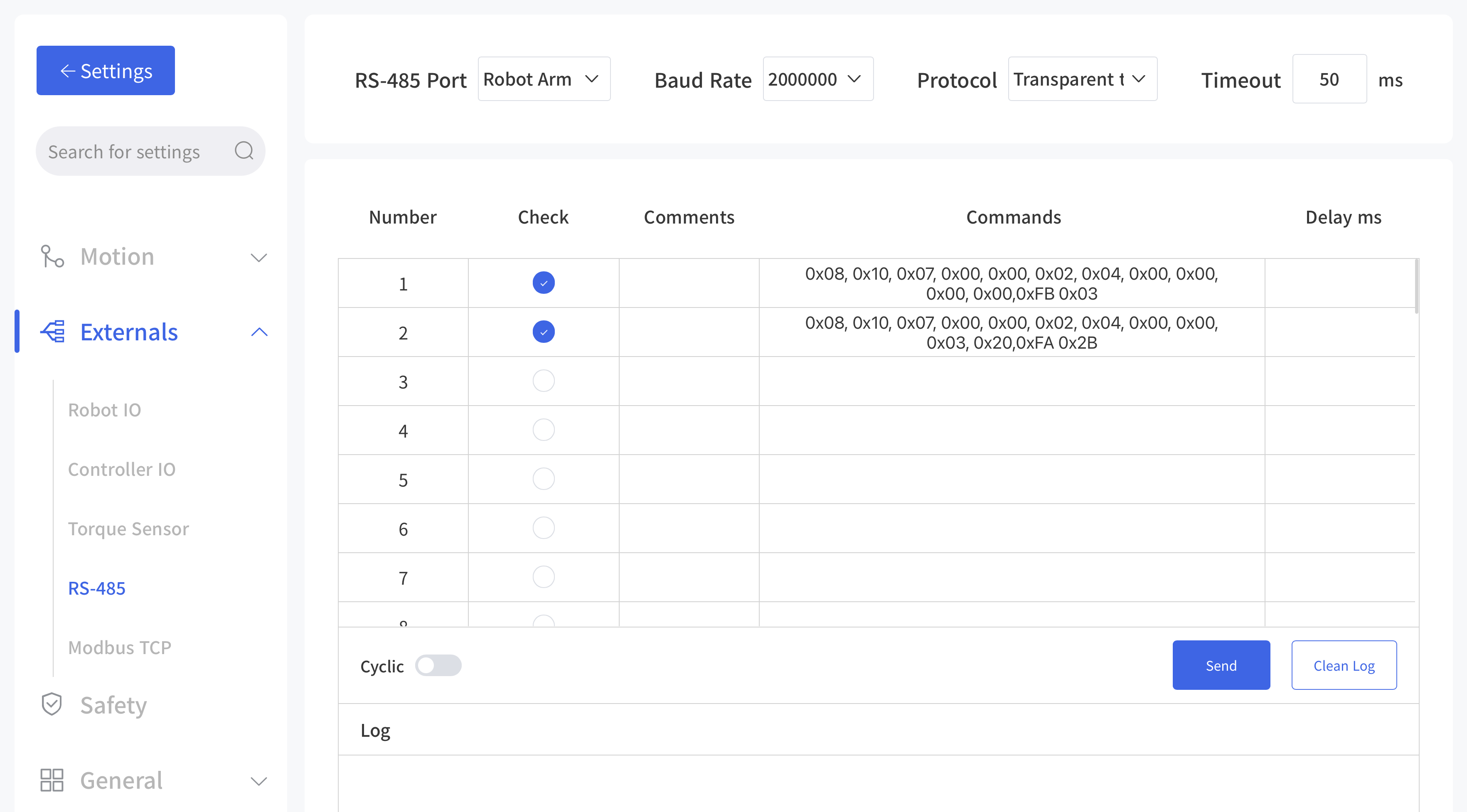

Go to the Settings - External Devices - RS485 interface.
Optional parameters:

• RS-485 Port: Select the robotic arm;
• Baud Rate;
• Protocol: Select Transparent Transmission;
• Timeout Period;


Note: Click the Save button after modifying the parameters.

Control via Python SDK

1. Set the Baud Rate

code = arm.set_tgpio_modbus_baudrate(2000000)

2. Set the Timeout Period

is_transparent_transmission needs to be set to True (default is False).

code = arm.set_tgpio_modbus_timeout(timeout=1000, is_transparent_transmission=True)

3. Send Corresponding RS485 Data

is_transparent_transmission needs to be set to True (default is False). use_503_port needs to be set to True (default uses port 502).

# Open gripper
code, ret = arm.getset_tgpio_modbus_data(datas=[0x08, 0x10, 0x07, 0x00, 0x00, 0x02, 0x04, 0x00, 0x00, 0x03, 0x20, 0xFA, 0x2B], is_transparent_transmission=True, use_503_port=True)
print('open gripper, code={}, ret={}'.format(code, ret))
time.sleep(0.5)


# Close gripper
code, ret = arm.getset_tgpio_modbus_data(datas=[0x08, 0x10, 0x07, 0x00, 0x00, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0xFB, 0x03 ], is_transparent_transmission=True, use_503_port=True)
print('close gripper, code={}, ret={}'.format(code, ret))
time.sleep(0.5)
